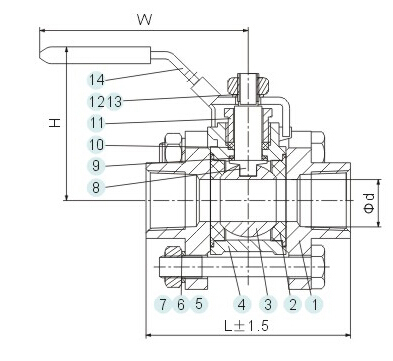

Bill of Material
No. | Part name | Material
| |||
1 | Bonnet | WCB | CF8 | CF8M |
|
2 | Seat | RPTFE | |||
3 | Ball | 304 | 304 | 316 | |
4 | Body | WCB | CF8 | CF8M | |
5 | Bolt | 304 | |||
6 | Spring washer | 304 | |||
7 | Nut | 304 | |||
8 | Stem | 304 | 304 | 316 | |
9 | Stem washer | PTFE | |||
10 | Packing | PTFE | |||
11 | Gland | 304 | |||
12 | Spring washer | 304 | |||
13 | Nut | 304 | |||
14 | Handle | SS+PVC | |||
Dimension
Size | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
d | 8 | 10 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 | 100 |
L | 65 | 65 | 70 | 80 | 92 | 112 | 116 | 142 | 167 | 194 | 252 |
H | 47 | 47 | 54 | 66 | 74 | 88 | 96 | 104 | 121 | 129 | 156 |
W | 100 | 100 | 120 | 120 | 140 | 150 | 180 | 180 | 240 | 240 | 280 |
