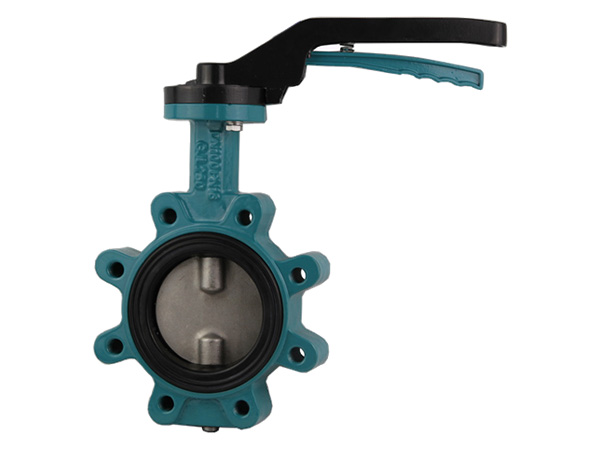

No. ：112L
- Size: DN40-DN600
- Design Standard: ISO 5752, MSS SP-67, API609
- Face to Face: EN558-1 20 Series, ISO5752 20 Series, API609
- Flange drilling according to ISO7005-2 PN10/PN16, EN1092-2 PN10/PN16, ANSI 125/150, AS4087 PN14/PN16, JIS2211-2212
- Working Pressure: PN10, PN16, 200PSI, 250PSI, 300PSI, 10K

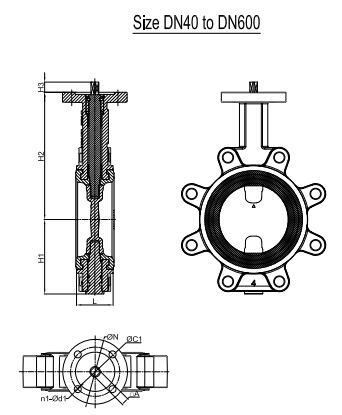

Dimensions (mm):
Size | L | H1 | H2 | H3 | ISO 5211 | ΦN | ΦC1 | n1-Φd1 | □A | |
mm | inch | |||||||||
DN40 | 1 1/2" | 33 | 52 | 126 | 14.5 | F05 | 65 | 50 | 4-8 | 9 |
DN50 | 2" | 43 | 57 | 143 | 14.5 | F05 | 65 | 50 | 4-8 | 9 |
DN65 | 2 1/2" | 46 | 68 | 155 | 14.5 | F05 | 65 | 50 | 4-8 | 9 |
DN80 | 3" | 46 | 82 | 160 | 14.5 | F05 | 65 | 50 | 4-8 | 9 |
DN100 | 4" | 52 | 100 | 181 | 14.5 | F07 | 90 | 70 | 4-10 | 11 |
DN125 | 5" | 56 | 112 | 194 | 20 | F07 | 90 | 70 | 4-10 | 14 |
DN150 | 6" | 56 | 126 | 202 | 20 | F07 | 90 | 70 | 4-10 | 14 |
DN200 | 8" | 60 | 162 | 240 | 28 | F07 | 90 | 70 | 4-10 | 17 |
DN250 | 10" | 68 | 193 | 272 | 28 | F10 | 125 | 102 | 4-12 | 22 |
DN300 | 12" | 78 | 236.5 | 318 | 28 | F10 | 125 | 102 | 4-12 | 22 |
DN350 | 14" | 78 | 267 | 368 | 45 | F10 | 125 | 102 | 4-12 | 22 |
DN400 | 16" | 102 | 298.6 | 400 | 51.2 | F14 | 175 | 140 | 4-18 | 27 |
DN450 | 18" | 114 | 318 | 422 | 51.2 | F14 | 175 | 140 | 4-18 | 27 |
DN500 | 20" | 127 | 355 | 480 | 64.2 | F14 | 175 | 140 | 4-18 | 36 |
DN600 | 24" | 154 | 444 | 562 | 70.2 | F16 | 210 | 165 | 4-22 | 36 |
